Chain DIN 764 With German Standard

Brand Name : Zhongyuan

Model Number : Standard and Customized

Certification : CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc.

Place of Origin : China

MOQ : 1

Price : As per quotation

Payment Terms : TT, L/C, Etc.

Supply Ability : Satisfy clients needs

Delivery Time : As per offer

Packaging Details : Pallet or Customized

Type : Cranked Link Chain

Material : Alloy Steel, High Tensile, Heat Treated.

Surface Treatment : Zinc Plated, Black Painted, Hot Dip Galvanized, Powder Coated

Structure : Flash Butt Welded Chain

Feature : Heat Resistant

Chain Size : 4mm to 26mm

Color : Self Color, Red ,Green, or as to your request

Application : Ship,Iron And Steel Industry, Petroleum Chemical Industry, Coal Mine

Contact Now

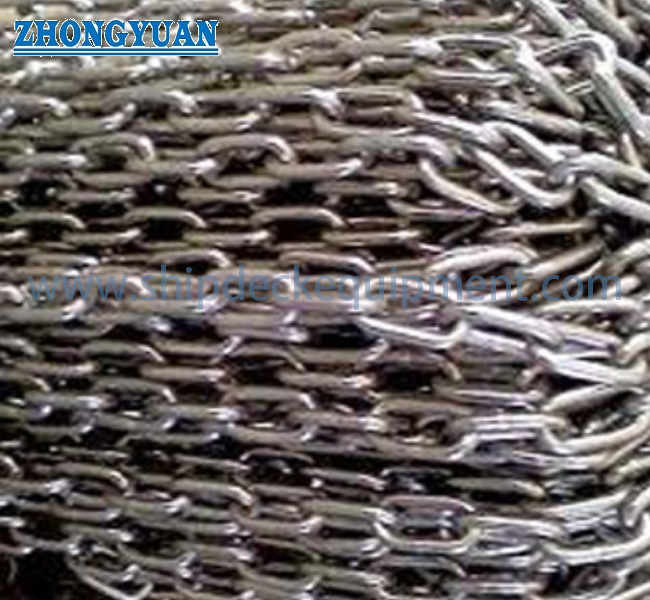

Chain DIN 764 With German Standard



Description:

Chain din 764 with German standard is a sort of round steel link chain for conveyors. The available steel grades are grade 2, grade 3, and grade 5. The chain is calibrated and tested. There are two types of tolerance: A tolerance class A, for use with chain wheels; B tolerance class B, for use with rollers. It should be noted that the din 764 chain should not intended for use as lifting chains or chain slings.The chain finises are black painted, galvanized or as your request.



Main Technical Specifications:

  1. Type:Cranked Link Chain
  2. Material:Alloy Steel, High Tensile, Heat Treated.
  3. Surface Treatment:Zinc Plated, Black Painted, Hot Dip Galvanized, Powder Coated
  4. Structure:Flash Butt Welded Chain
  5. Feature:Heat Resistant
  6. Chain Size:4mm to 26mm
  7. Color: Self Color, Red ,Green, or as to your request
  8. Application: Ship,Iron And Steel Industry, Petroleum Chemical Industry, Coal Mine



Main Technical Parameters:

Size(d) Inside Length(t) Inside Width (b1) Outside Width (b2) Length Per 11 Links Weight Per 100M Breaking Load Test Load
mm ±mm mm ±mm mm mm mm ±mm kg kn kg
4 0.20 16 0.30 5 14 176 1.60 31.3 7 400
0.20 0.90
5 0.20 18 0.40 7 18.2 198 1.80 51.4 11.8 680
0.20 1.00
6 0.20 21 0.50 8 21.5 231 2.00 74.0 16.5 850
0.20 1.10
8 0.20 28 0.50 11 29 308 2.20 131.5 32 1680
0.30 1.20
10 0.30 35 0.60 14 36 385 2.70 200 50 2630
0.30 1.50
12 0.30 42 0.60 16 41 462 3.20 298 70 3680
0.30 1.80
13 0.40 45 0.70 18 47 495 3.50 350 80 4200
0.40 2.00
14 0.45 49 0.75 20 48 539 3.80 406 92 4830
0.45 2.00
16 0.50 56 0.90 22 58 616 4.30 520 125 6700
0.50 2.80
18 0.80 63 1.00 24 65 693 4.70 650 160 8400
0.50 2.80
20 1.00 70 1.10 27 72 770 5.40 820 200 10000
0.60 3.20
23 1.20 80 1.30 31 83 880 6.20 1100 250 13000
0.70 3.50
26 1.30 91 1.50 35 94 1001 7.00 1400 320 16000
0.80 4.00

Chain DIN 764 With German Standard
