Marine Electric Vertical Anchor Windlass Mooring Capstan Ship Deck Equipment

Name: Marine Electric Vertical Anchor Windlass Mooring Capstan Ship Deck Equipment
Brand: Zhongyuan
Price: 1 USD

Buy cheap Marine Electric Vertical Anchor Windlass Mooring Capstan Ship Deck Equipment product

Place of Origin : China

Brand Name : Zhongyuan

Certification : CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc.

Model Number : Standard and Customized

MOQ : 1

Price : As per quotation

Packaging Details : Pallet or Customized

Delivery Time : As per offer

Payment Terms : TT, L/C, Etc.

Supply Ability : Satisfy clients needs

Working Load : 5KN to 250KN

Type : Vertical or Horizontal

Warping Speed(m/min) : 9-18m/Min

Wire Rope Dia. : 12.5- 46 (mm)

Material : Stainless Steel (Polished), Mild Steel, Casting

Power : Electric, Electric Hydraulic, Diesel Engine type

Classification Certificates : CCS, NK, BV, ABS, DNV-GL, LR, KR, BKI, IRS, RS, Etc

Contact Now

Marine Electric Vertical Anchor Windlass Mooring Capstan Ship Deck Equipment

Description:

Vertical electric capstan windlass designed for small ship to hoisting anchor and mooring rope. It is widly used on coastal ship, inland waterway ship.

Main Technical Specification:

Working Load: 5KN to 250KN
Type: Vertical or Horizontal
Warping Speed(m/min):9-18m/Min
Wire Rope Dia. 12.5- 46 (mm)
Material: Stainless Steel (Polished), Mild Steel, Casting
Power: Electric, Electric Hydraulic, Diesel Engine type
Classification Certificates: CCS, NK, BV, ABS, DNV-GL, LR, KR, BKI, IRS, RS, Etc.

Electric Anchor　Capstan Parameters

Chain Gypsy			Warping Head		Motor Power (KW)
Chain Dia. (mm)	Load (KN)	Speed (m/min)	Warping Head Dia. (mm)	Speed (m/min)	Motor Power (KW)
12.5	7.5	12	200	10-18	4.5
14	11	12	200	10-18	5
16	15	12	250	10-18	7
17.5	17	12	250	10-18	9
19	19	12	250	10-18	11
22	20.6	12	300	10-18	11
24	24.5	12	300	10-18	11
26	28.7	12	300	10-18	11
28	33.3	12	300	10-18	11
30	38.3	12	350	10-18	18.5
32	43.5	12	350	10-18	18.5
34	49.1	12	350	10-18	22
36	55.1	12	350	10-18	30
38	61.4	12	350	10-18	30
40	68	12	400	10-18	30
22	23	12	400	10-18	11
24	27.4	12	400	10-18	15
26	32.1	12	400	10-18	18.5
28	37.2	12	400	10-18	18.5
30	42.8	12	500	10-18	22
32	48.6	12	500	10-18	30
34	54.9	12	500	10-18	30

Marine Electric Vertical Anchor Windlass Mooring Capstan Ship Deck Equipment

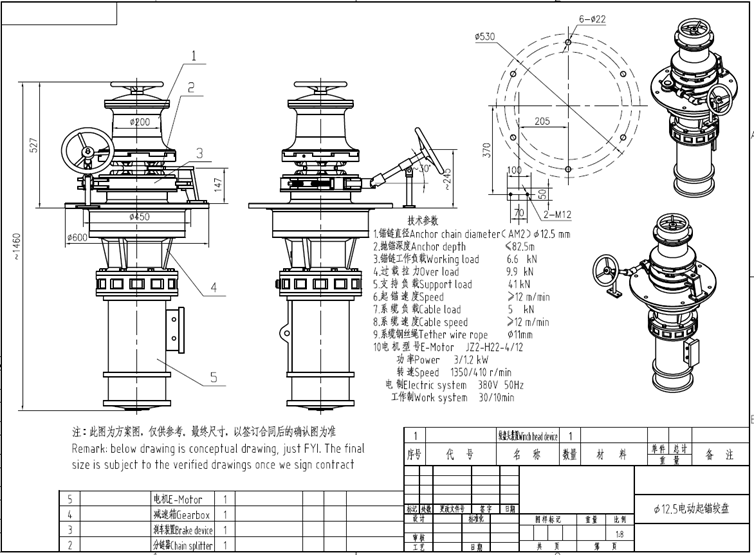

Drawing of Marine Electric Vertical Anchor Windlass Mooring Capstan Ship Deck Equipment
