SMIT Bracket Towing Bracket Ship Towing Equipment

Name: SMIT Bracket Towing Bracket Ship Towing Equipment
Brand: Zhongyuan
Price: 1 USD

Buy cheap SMIT Bracket Towing Bracket Ship Towing Equipment product

Place of Origin : China

Brand Name : Zhongyuan

Certification : CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc.

Model Number : Standard and Customized

MOQ : 1

Price : As per quotation

Packaging Details : Pallet or Customized

Delivery Time : As per offer

Payment Terms : TT, L/C, Etc.

Supply Ability : Satisfy clients needs

Nominal No. : 54, 76, 84,95

Materials : C-Mn Steel, Mild Steel, High Tensile Steel, Forging Alloy Steel.

Weight : 195 to 760kg

Surface treatment : sandblasting to S2.5 + one layer of epoxy shop primer, Polished Stainless Steel, customized surface treatment available

Classification Certificates : CCS, NK, BV, ABS, DNV-GL, LR, KR, RINA, IRS, RS, Etc

Contact Now

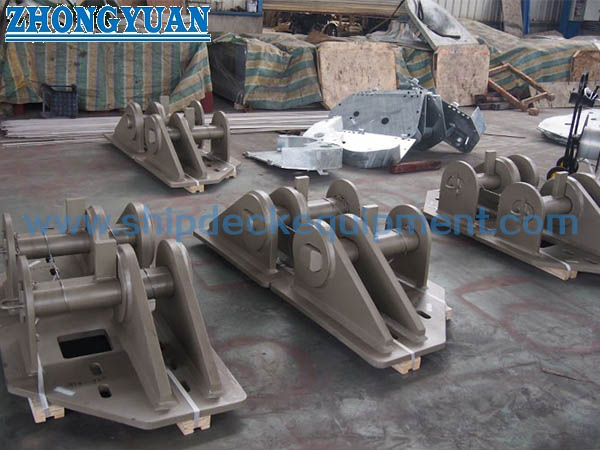

SMIT Bracket Towing Bracket Ship Towing Equipment

Description:

A fitting for securing the end link of a chafing chain, consisting of two parallel vertical plates mounted on a base with a sliding bolt passing through them. It is welded on the forecastle deck and used for emergency towing.

Main Technical Specifications:

Nominal No.;54, 76, 84,95
Materials: C-Mn Steel, Mild Steel, High Tensile Steel, Forging Alloy Steel.
Weight: 195 to 760kg;
Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer, Polished Stainless Steel, customized surface treatment available.
Classification Certificates: CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS

Main Technical Parameters:

Chain Nominal Dia. (mm}	A	B	C	D	E	F	H	s	Weight(kg)	SWL(KN)	MBL(KN)
54	720	650	115	75	100	205	30	118	195	1000	2000
76	900	800	160	110	150	240	30	170	390	2000	4000
84	1018	905	170	120	160	273	35	210	560	2500	5000
95	1120	940	195	135	170	290	40	276	760	3000	6570

SMIT Bracket Towing Bracket Ship Towing Equipment

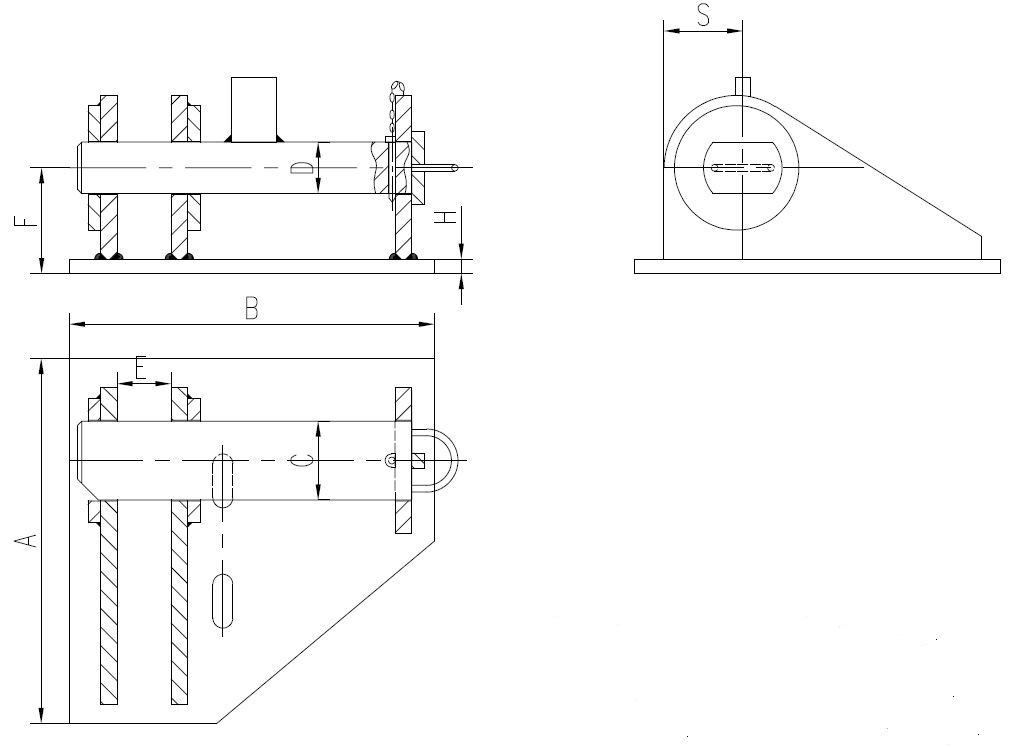

Drawing of SMIT Bracket Towing Bracket Ship Towing Equipment
