ASTM A27-70-36 Cast Steel Kevel Chocks Ship Mooring Equipment

  • 1
  • 2
  • 3

Place of Origin : China

Brand Name : Zhongyuan

Certification : CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc.

Model Number : Standard and Customized

MOQ : 1

Price : As per quotation

Packaging Details : Pallet or Customized

Delivery Time : As per offer

Payment Terms : TT, L/C, Etc.

Supply Ability : Satisfy clients needs

Model Type : Kevel Chock

Dimensions(inches) : Kevel Chocks (24" 30" 36" 42" 48"); Large Kevels (36”, 42”, 48”); X-Large Kevels (60”), etc

Material Grade : ASTM A27-70-36 Cast Steel, Casting Stainless Steel

Quality Control : Heat Treatment, Radiographic Examination (RT), Magnetic Testing (MT), Pull Load Test

Surface treatment : sandblasting to S2.5, one layer of epoxy shop primer, Polished, Galvanized, customized surface treatment available

Certificate : CCS/BV/LR/ABS/DNV-GL

Contact Now

ASTM A27-70-36 Cast Steel Kevel Chocks Ship Mooring Equipment



Description:

We produce all kinds of Kevel. Includes Kevel Chocks, Heavy Kevels, Large Kevels, X-Large Kevels, Kevel Chock Thru deck (Thru Deck Kevel), Small Kevels, Raised Kevels, Thru Deck Raised Kevels.



Main Technical Specification:

1. Model Type: Kevel Chock

2. Dimensions(inches): Kevel Chocks (24" 30" 36" 42" 48"); Large Kevels (36”, 42”, 48”); X-Large Kevels (60”), etc.

3. Material Grade: ASTM A27-70-36 Cast Steel, Casting Stainless Steel

4. Quality Control:Heat Treatment, Radiographic Examination (RT), Magnetic Testing (MT), Pull Load Test

5. Surface treatment: sandblasting to S2.5, one layer of epoxy shop primer, Polished, Galvanized, customized surface treatment available.

6. Certificate: CCS/BV/LR/ABS/DNV-GL



Main Technical Parameter:

Description Size Dimensions, Inches (MM)

Weight

LBS

(KGS)
A B C D E F G H I J K
Kevel Chocks 24”

24”

(610)

3”

(76)

7-1/2”

(190)

4”

(101)

5-5/8”

(143)

5-1/8”

(130)

2-1/4”

(57)

3-1/4”

(83)

9”

(229)

10-1/2”

(267)

1/2”

(13)

50

(23)
30”

30”

(762)

3-1/4”

(83)

9-1/2”

(241)

4”

(101)

7”

(178)

5-5/8”

(143)

2-3/8”

(60)

6-7/8”

(175)

14”

(356)

20-1/4”

(514)

1/2”

(12.7)

75

(34)
36”

36”

(914)

4”

(101)

11”

(279)

5”

(127)

8”

(203)

6-3/4”

(171)

3-1/4”

(83)

8-1/4”

(210)

17”

(432)

23-1/2”

(572)

1/2”

(12.7)

98

(44)
42”

42”

(1066)

4-3/4”

(121)

12-1/2”

(318)

6”

(152)

9”

(229)

7-7/8”

(200)

4-1/8”

(104)

9-5/8”

(245)

20”

(508)

26-3/4”

(679)

1/2”

(12.7)

168

(76)
48”

48”

(1219)

5-1/2”

(140)

14”

(356)

7”

(178)

10”

(254)

9”

(229)

5”

(127)

11”

(279)

23”

(584)

30”

(762)

2/3”

(17)

220

(100)

 ASTM A27-70-36 Cast Steel Kevel Chocks Ship Mooring Equipment

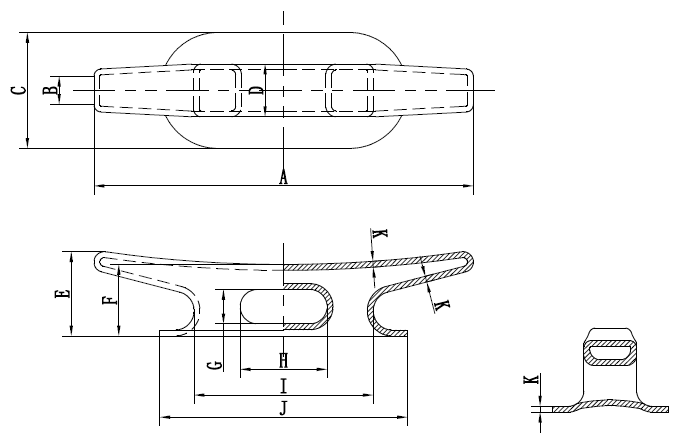

        Drawing of ASTM A27-70-36 Cast Steel Kevel Chocks Ship Mooring Equipment



ASTM A27-70-36 Cast Steel Kevel Chocks Ship Mooring Equipment



ASTM A27-70-36 Cast Steel Kevel Chocks Ship Mooring Equipment
